How We Turned a Complex AI-Generated Logo Into a Clean Embroidery File: A Case Study

Cindi Mansfield runs Blueray Concepts. A client had come to her with a logo, a dragon coiled around a sword and rifle, bold lettering banked underneath, and asked her to get it embroidered. The problem was the logo itself. It was AI-generated artwork, and if you've ever tried to digitize one of those, you already know why that's a problem.

AI art looks great on a screen and falls apart the moment you try to turn it into stitches. It's full of soft gradients that don't exist in thread, tiny overlapping details that blur together at embroidery size, and shading that a machine simply can't replicate the way a screen renders it. Cindi's team ran into exactly that wall. So she searched for a digitizer who could actually handle it, and that's how she found us.

What She Sent Us

The file was a high-resolution PNG of the badge design, teal and silver, a lot of fine detail packed into a shield-shaped emblem: scale texture on the dragon, a flag with folds, a rifle with visible mechanical parts, a sword, and two lines of stacked text. On screen, it's a striking design. As a stitch file, every one of those elements was a decision that needed to be made by hand.

The Call Before the Order

Before we started digitizing, we called Cindi. Not an automated email, an actual phone call. We asked about her fabric, her sizing, and what mattered most to her on this specific piece.

She told us straight: keep the density manageable, don't let the color changes stack up, minimize trims, and get it right in one pass. Her client didn't want a second round of adjustments. She'd already dealt with one failed attempt at digitizing this exact logo before finding us.

Why This Logo Was Actually Hard

Here's the part most customers don't see. A dragon wrapped around a sword and a rifle isn't one shape, it's a dozen overlapping shapes fighting for the same space. The scales needed a fill pattern that reads as texture without turning into a dense, stiff patch. The rifle's thin metal edges needed satin stitching narrow enough to stay crisp at 4 inches without the thread bridging gaps it shouldn't. The lettering had to stay legible at that size without thickening into a blob.

And every time you switch from teal to silver to black to white, that's a color stop, a trim, and a few seconds of machine downtime. On a complex badge like this, an inexperienced digitizer will often just chase visual accuracy and end up with a file that has 30+ color changes and a stitch count that turns the patch stiff as cardboard. We went the other direction: we mapped out where colors could share a stitch block instead of separating unnecessarily, and cut down where the design allowed it without losing the shapes that made the logo recognizable.

What We Actually Delivered

Here's the finished file, pulled straight from the production sheet:

Size: 5.21 in x 5.00 in
Stitch count: 45,792
Colors: 6
Color changes: 17
Trims: 44
Fabric: Cotton twill
Format: DST, built for Tajima
Thread: Madeira Classic 40

Forty-five thousand stitches sounds like a lot until you see the design, at that detail level, it's actually a tight, controlled number. The trim count matters more than people realize: every trim is a spot where thread gets cut and the machine has to reposition, and each one is a small opportunity for a snag or a misalignment. 44 trims across a design this dense is disciplined work, not an accident.

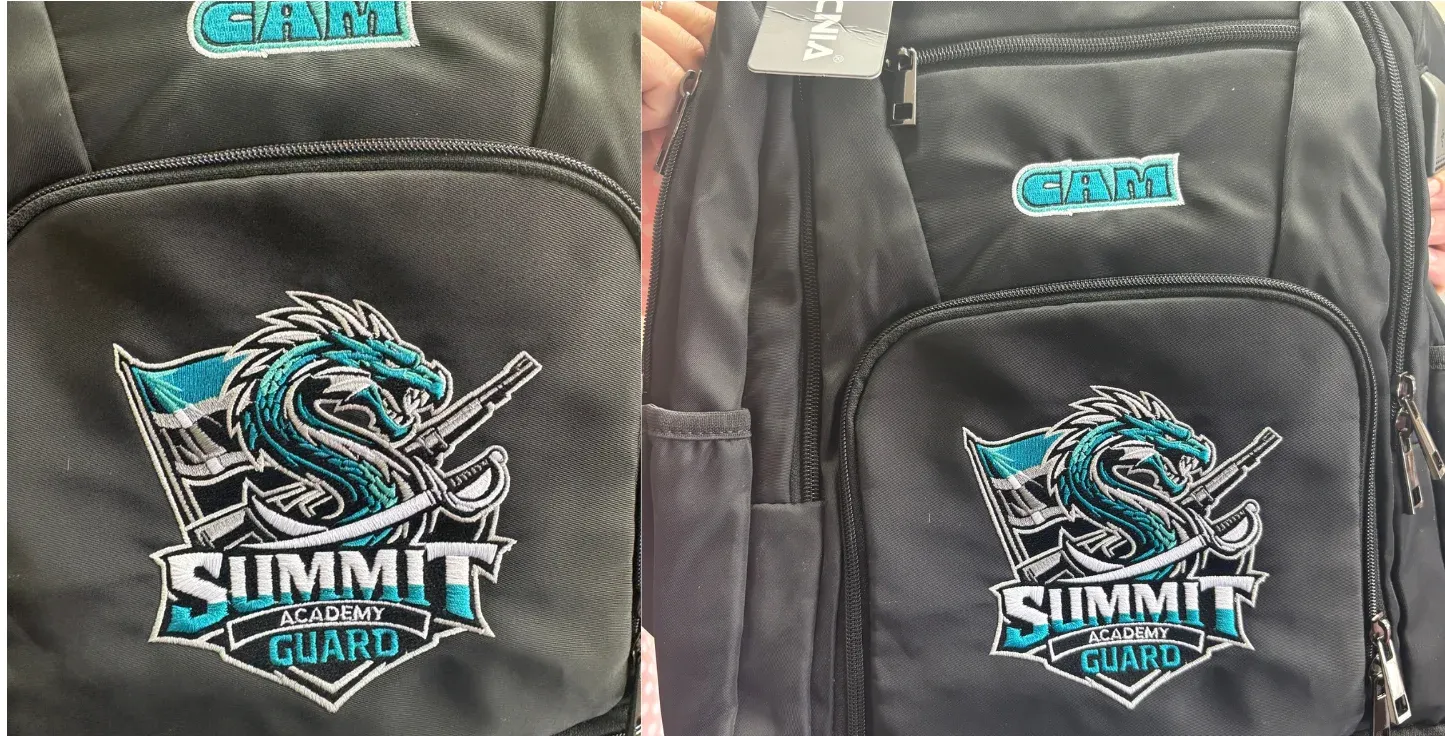

How It Sewed Out

The file ran clean on the first test. No re-digitizing, no density adjustments after the fact, no "let's try version two." That mattered specifically because Cindi's client had already been burned once by a design that didn't sew properly on the first attempt elsewhere.

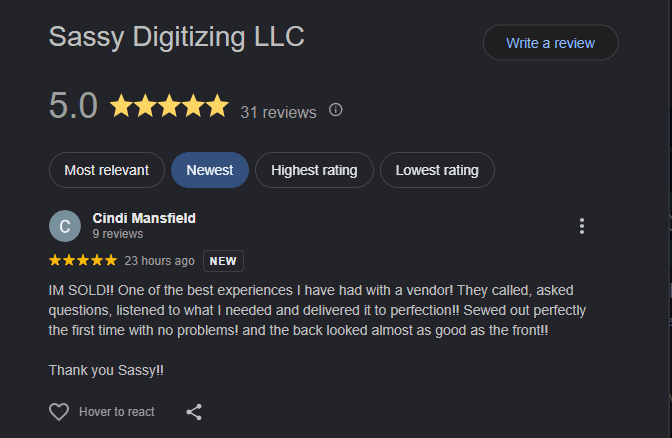

Here's what she posted after receiving the finished patches:

"IM SOLD!! One of the best experiences I have had with a vendor! They called, asked questions, listened to what I needed and delivered it to perfection!! Sewed out perfectly the first time with no problems! and the back looked almost as good as the front!! Thank you Sassy!!"

Cindi Mansfield, Blueray Concepts

The "back looked almost as good as the front" line is the detail that tells you the file was actually built correctly. A messy back, loose threads, visible jump stitches, tangled bobbin thread, is usually the first sign a design was rushed or the underlay wasn't planned properly. A clean back means the trims were placed intentionally and the stitch sequencing was actually thought through, not just auto-generated.

The Actual Lesson Here

If you're a shop owner and a client hands you AI-generated artwork, don't assume it'll digitize the way a hand-drawn vector logo would. It won't. The gradients, the layered detail, and the visual noise that make AI art look impressive on a screen are exactly what makes it a nightmare to translate into thread. The fix isn't more stitches, it's a digitizer who knows which details to keep, which to simplify, and where to cut a color change without the design losing what made it recognizable in the first place.

That's the actual service. Not just converting a logo to embroidery, but knowing how to take something that was never designed for a needle and making the decisions that let it sew cleanly, on the first try, on real fabric, on a real machine.

If you've got a complex or AI-generated design you're not sure how to approach, you can see more of our finished work in our portfolio, or just send it over and we'll tell you straight whether it needs simplifying before it ever touches a machine.

Frequently Asked Questions (FAQs)

1. Why is it difficult to convert AI-generated artwork directly into an embroidery file?

AI tools create images using unorganized pixel gradients, blending colors, and complex shading rather than structured vector lines. Embroidery machines require defined vector paths, specific stitch types (satin, fill, or run), precise density controls, and underlay structures. Raw AI graphics lack these physical stitch parameters, leading to thread breaks, needle damage, and heavy fabric distortion if not manually re-engineered.

2. How does Sassy Digitizing handle complex AI artwork with multi-layered graphics?

We manually vectorize and re-path every element of the AI artwork instead of using automated auto-digitizing software. Our master digitizers clean up noisy pixel artifacts, simplify gradient overlaps into distinct thread shades, and apply customized pull compensation and underlay settings based on your target fabric.

3. Can you reduce stitch counts and thread trims on detailed AI designs?

Yes. During our engineering process, we perform palette consolidation and optimize stitch paths. By grouping similar color blocks and establishing logical travel paths, we eliminate unnecessary jump stitches and thread trims. This significantly reduces overall machine run time while preserving the high-impact visual details of the original design.

4. What details should I provide when ordering digitizing for an AI logo?

To get a first-time perfect sew out, provide your high-resolution AI artwork alongside key production details:

• The target fabric type (e.g., performance polyester, cotton twill, leather, or fleece).

• The intended garment placement (e.g., left chest, jacket back, or cap front).

• Desired final dimensions (width and height).

• Any specific thread preferences (e.g., metallic or standard polyester).

5. Will a complex AI design sew out cleanly on the first attempt?

With proper manual digitizing and fabric-specific planning, yes. As shown in the Summit Academy Guard case study, our pre-production consultation and density mapping ensure that your file is fully optimized for your machinery, delivering a clean sew out on the first run with zero thread breaks and a smooth backing.
