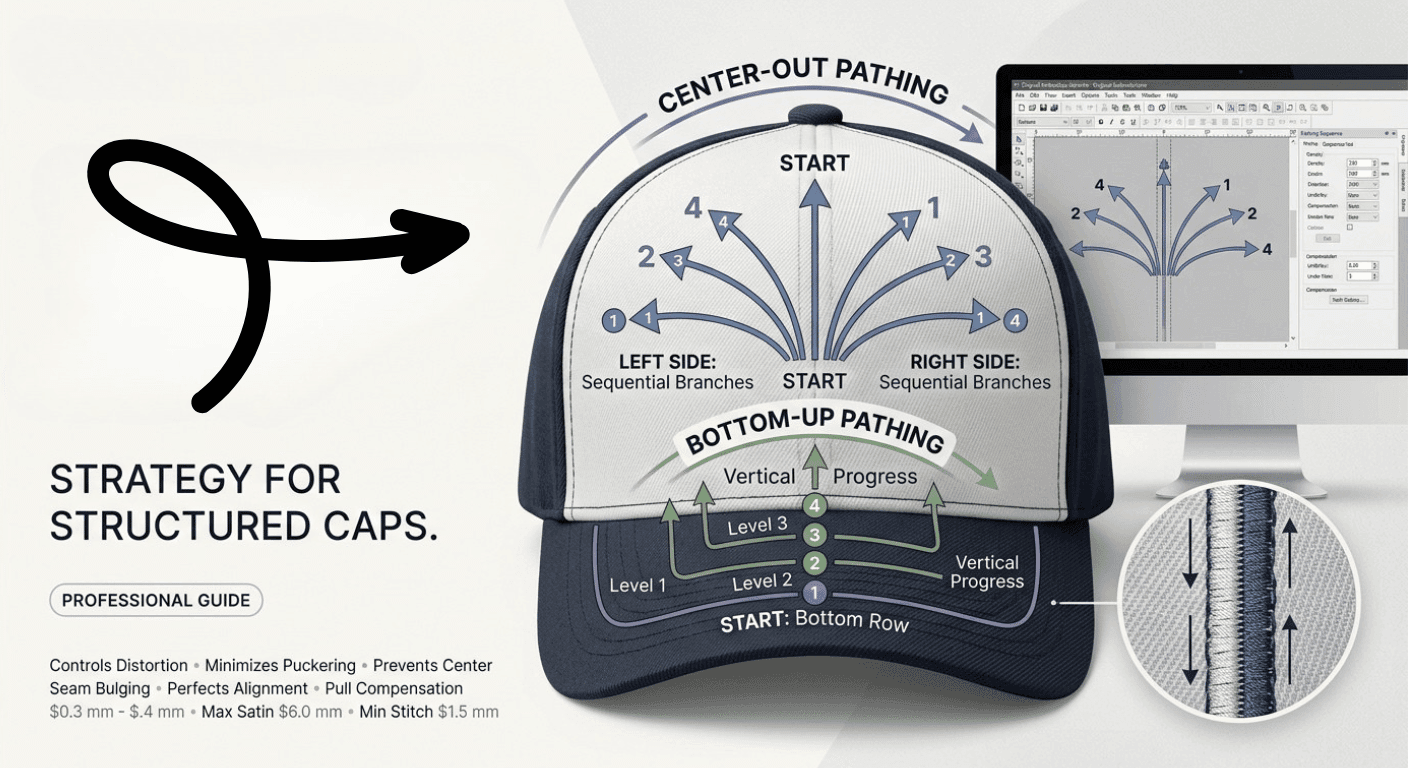

--- title: "Cap and Hat Digitizing Settings: The Complete Reference Chart (2026)" description: "Master the best embroidery digitizing settings for hats and caps. Learn about center-out pathing and pull compensation. Get a free trial at Sassy Digitizing today!" canonical: "https://localhost:3005/blog/digitizing/best-embroidery-digitizing-settings-for-hats-caps" last-updated: "2026-09-04" --- # Cap and Hat Digitizing Settings: The Complete Reference Chart (2026) > Master the best embroidery digitizing settings for hats and caps. Learn about center-out pathing and pull compensation. Get a free trial at Sassy Digitizing today! 2026-09-04 Source: https://localhost:3005/blog/digitizing/best-embroidery-digitizing-settings-for-hats-caps --- Attempting to embroider a structured cap using standard flat-garment parameters is the fastest way to trigger thread breaks, birdnesting, and severe registration shifts along the center seam. Because curved cylinder drivers push and pull fabric along a 270-degree arc, traditional digitizing settings simply fall apart when transferred to headwear. Achieving crisp satin borders, sharp small text, and zero distortion requires a completely recalibrated technical foundation. This 2026 reference guide provides the exact, machine-tested digitizing parameters commercial shops need from specific pull compensation values (0.35–0.45 mm) and underlay density controls to center-out, bottom-up pathing sequences engineered specifically for Tajima, Barudan, and Ricoma hat frames. [**Get Your Cap Logo Digitized**](https://sassydigitizing.com/digitizing-services/cap-digitizing) ## In This Guide - [The Master Settings Chart: Flat Garment vs. Cap](#master-chart) - [Pathing: The Golden Rule of Center-Out, Bottom-Up](#pathing) - [Underlay Settings for Fabric Stability](#underlay) - [Pull Compensation for Cap Frames](#pull-compensation) - [Density and Stitch Length Calibration](#density) - [Settings by Cap Type: Structured vs. Unstructured](#by-cap-type) - [Settings by Design Element](#by-element) - [Maximum Design Dimensions by Cap Style](#max-dimensions) - [Needle, Tension, and Backing Reference](#machine-calibration) - [Common Setting Mistakes and Their Cost](#mistakes) - [FAQs](#faqs) ## The Master Settings Chart: Flat Garment vs. Cap When a commercial cap frame driver rotates a cap under the needle, the fabric shifts, pushes, and pulls in ways a flat platen never does. Every setting below has to change from a flat-garment file to a cap file for exactly that reason. | Setting | Flat Garment Value | Cap Value | | ------------------------------------ | ------------------------ | ----------------------------------------------------- | | Digitizing sequence | Any logical order | Center-out, bottom-up (mandatory) | | Pull compensation, standard satin | 0.15 to 0.20mm | 0.30 to 0.40mm | | Pull compensation, wide satin (6mm+) | 0.20 to 0.25mm | Up to 0.45mm | | Satin stitch spacing | 0.35 to 0.38mm | Around 0.40mm | | Minimum stitch length | 1.0mm | 1.5mm (shorter drills through the backing like a bit) | | Underlay type, satin columns | Center-walk or edge-walk | Contour underlay following the column shape | | Underlay type, fills | Tatami/mesh grid | Zig-zag underlay | | Needle | Standard sharp | 75/11 or 80/12 sharp, SAN 6/DBxK5 | | Maximum design height | Limited by garment only | 2.25 to 2.5 inches on a standard structured cap | [**Try Your First Cap File at 50% Off**](https://sassydigitizing.com/first-order-discount) ## Pathing: The Golden Rule of Center-Out, Bottom-Up ![The Golden Rule: Center Out and Bottom Up Pathing](https://admin.sassydigitizing.net/uploads/Center_Out_and_Bottom_Up_Pathing_cb4478770a.png) Center-out pathing systematically pushes moving fabric outward toward the edges instead of ahead of the needle, which is what causes a logo to shift or land off-center when a file is digitized left-to-right instead. Bottom-up sequencing anchors the design near the stiff front bill first, then works upward toward the crown, which prevents warping as the needle moves into the more flexible upper section of the cap. This isn't a style preference, it's a mandatory setting on every cap file, regardless of design. ## Underlay Settings for Fabric Stability ![Underlay Settings for Fabric Stability](https://admin.sassydigitizing.net/uploads/Underlay_Settings_a68428c915.webp) Use contour underlay, following the actual shape of the column, for satin elements, and zig-zag underlay for filled shapes. Avoid over-dense underlay: too much underlay stitching on a cap causes needle deflection, skipped stitches, and broken needles, because the needle is already fighting the buckram and the curved frame without an overbuilt foundation adding more resistance. ## Pull Compensation for Cap Frames Set pull compensation between 0.30mm and 0.40mm for standard cap elements, rising to as much as 0.45mm on satin columns wider than 6mm. Without enough compensation, thread tension on a cap frame pulls circles into ovals and drifts straight borders out of alignment, the same physical effect covered in more depth in our [full cap embroidery digitizing guide](https://sassydigitizing.com/blog/embroidery/cap-embroidery-digitizing). ## Density and Stitch Length Calibration Keep satin stitch density around 0.40mm spacing, with a minimum stitch length of 1.5mm. Shorter stitches function like a drill bit against the cap backing, repeatedly puncturing nearly the same point and weakening the buckram instead of laying clean, even coverage across it. ## Settings by Cap Type: Structured vs. Unstructured | Setting | Structured Cap | Unstructured Cap | | ------------------- | ------------------------------ | ----------------------------------- | | Front panel backing | Heavy buckram, self-supporting | Soft twill, no internal stiffener | | Pull compensation | 0.20 to 0.30mm | 0.35 to 0.50mm | | Underlay strategy | Light edge-walk or center-walk | Heavy grid/tatami or double zig-zag | | Stitch density | 0.40 to 0.42mm spacing | 0.42 to 0.45mm spacing | ## Settings by Design Element | Element | Stitch Spacing | Pull Compensation | Underlay | | --------------------------- | -------------- | ----------------- | --------------------------------------------- | | Small lettering (under 5mm) | 0.42 to 0.48mm | 0.15 to 0.20mm | Center-walk only, light | | Standard satin (under 6mm) | 0.40 to 0.42mm | 0.30 to 0.40mm | Contour underlay | | Wide satin (6mm+) | 0.40 to 0.42mm | Up to 0.45mm | Contour underlay, double pass | | Fill areas | 0.42 to 0.45mm | 0.25 to 0.35mm | Zig-zag | | 3D puff satin over foam | 0.20 to 0.22mm | 0.35 to 0.45mm | None over foam, zig-zag on flat sections only | [**See Our 3D Puff Cap Service**](https://sassydigitizing.com/digitizing-services/3d-puff-digitizing) ## Maximum Design Dimensions by Cap Style | Cap Style | Safe Maximum Height | Notes | | ----------------------- | ------------------------------------------- | -------------------------------------------------------- | | Standard structured cap | 2.25 to 2.5 inches | Front panel height limits design before it hits the seam | | Unstructured cap | 2.0 to 2.25 inches | Softer front panel gives slightly less usable height | | Trucker/mesh-back cap | 2.0 to 2.25 inches on foam front panel only | Design must stay clear of the mesh-to-foam seam line | ## Needle, Tension, and Backing Reference | Setting | Recommended Value | | --------------------- | ------------------------------------------------------------ | | Needle | 75/11 or 80/12, SAN 6/DBxK5, sharp or SES ballpoint tip | | Needle coating | Titanium-coated for high-volume production runs | | Backing | Heavy-weight tearaway (2.5 to 3.0 oz), cap-driver formulated | | Cap frame driver play | Less than 1mm between driver ring and machine arm | ## Common Setting Mistakes and Their Cost | Mistake | What Happens | Correct Setting | | ------------------------------------------------- | --------------------------------------------------- | -------------------------------------------------------------- | | Left-to-right pathing on a cap | Logo shifts or lands off-center | Center-out, bottom-up | | Flat-garment pull compensation reused on a cap | Circles pull into ovals, borders drift | 0.30 to 0.40mm, up to 0.45mm on wide satin | | Stitch length under 1.5mm | Needle drills the same spot, weakens buckram | 1.5mm minimum on caps | | Over-dense underlay | Needle deflection, skipped stitches, broken needles | Contour underlay for satin, zig-zag for fills, nothing heavier | | Design taller than 2.5 inches on a structured cap | Design runs into the seam or crown curve, distorts | Stay within 2.25 to 2.5 inches | ## Frequently Asked Questions (FAQs) ### Why does my design shift or misalign when stitching directly over the center seam? The center seam concentrates fabric displacement. Without correct pull compensation and center-out pathing, the design shifts as the needle crosses it. ### What is the maximum safe height for standard hat embroidery designs? On a standard structured cap, 2.25 to 2.5 inches is the safe maximum before the design runs into the front seam or crown curve. ### Do I need a specific needle for cap embroidery? Yes, a 75/11 or 80/12 sharp needle (SAN 6/DBxK5) for cleaner piercing through heavy buckram. Titanium-coated needles are worth it for high-volume production. ### Can I run the same file on a flat shirt and a cap? No. Cap files need entirely different underlay, pathing sequence, and pull compensation values from a flat-garment file, even for the identical logo. ### What pull compensation should I use for wide satin lettering on a cap? Up to 0.45mm for satin columns wider than 6mm, compared to 0.30 to 0.40mm for standard-width elements. ### Why do my needles keep breaking on cap orders? Usually a combination of stitch length under 1.5mm and the wrong needle size. Check both before assuming a machine or backing problem. ### What backing should I use for cap embroidery? A heavy-weight tearaway backing, 2.5 to 3.0 oz, formulated specifically for cap drivers, not a standard flat-garment backing. ### Do structured and unstructured caps need different settings? Yes. Unstructured caps need higher pull compensation (0.35 to 0.50mm versus 0.20 to 0.30mm) and heavier underlay, since they lack the buckram that gives a structured cap its own built-in stability. ### How much does professional cap digitizing cost? Pricing depends on stitch count and design complexity. See current rates on the [pricing page](https://sassydigitizing.com/pricing), and ask about the first-order discount before a full production run. ### How long does cap digitizing take? Standard commercial cap logos typically turn around in 2 to 6 hours with a professional digitizer.
