Beginner's Guide to Cap & Hat Digitizing: Everything You Need to Know
Embroidery on headwear is widely recognized as one of the most technical and demanding tasks in the custom apparel industry. Unlike flat garments like t-shirts or hoodies, caps feature curved surfaces, stiff buckram backing, thick center seams, and dynamic rotational movement during production.
If you are new to custom apparel decoration, understanding how cap digitizing works is the first step toward achieving clean, production-ready sew outs that run smoothly on your commercial machines.

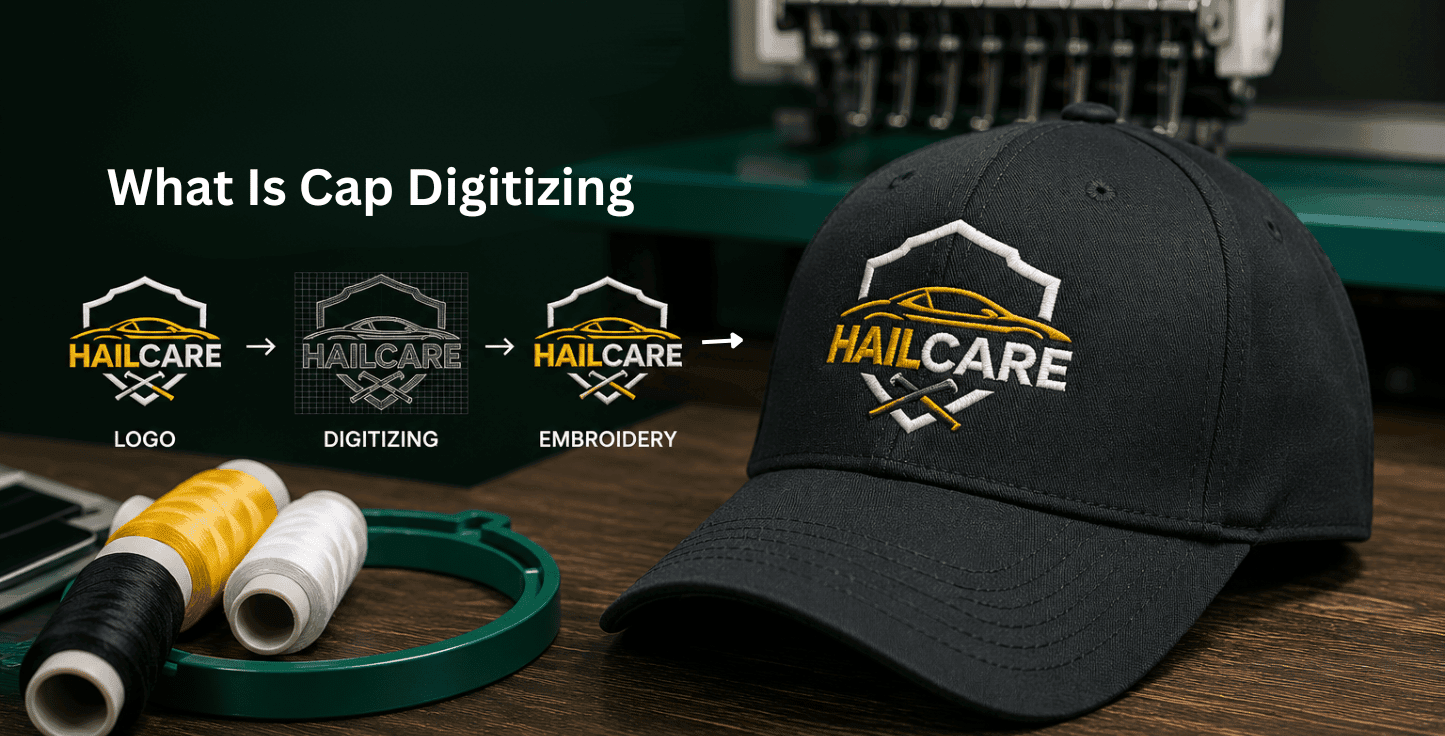

What Is Cap Digitizing?
Cap digitizing is the process of converting your logo or artwork into a stitch file specifically engineered for cap and hat embroidery. The curved surface of a cap requires specialized digitizing that accounts for curved-surface compensation, fabric tension, and frame pull. Auto-digitizing software cannot handle these variables correctly. Every cap file we produce is hand-built in Wilcom V9 and E2 by experienced digitizers who understand the mechanics of headwear production.
When you convert a raster graphic like PNG to PES or DST, a human digitizer must map out every stitch, select appropriate underlay foundations, set pull compensation, and sequence colors logically. Without these precise manual adjustments, even a simple logo will distort, pucker, or shift off-center on a 270-degree cap driver.

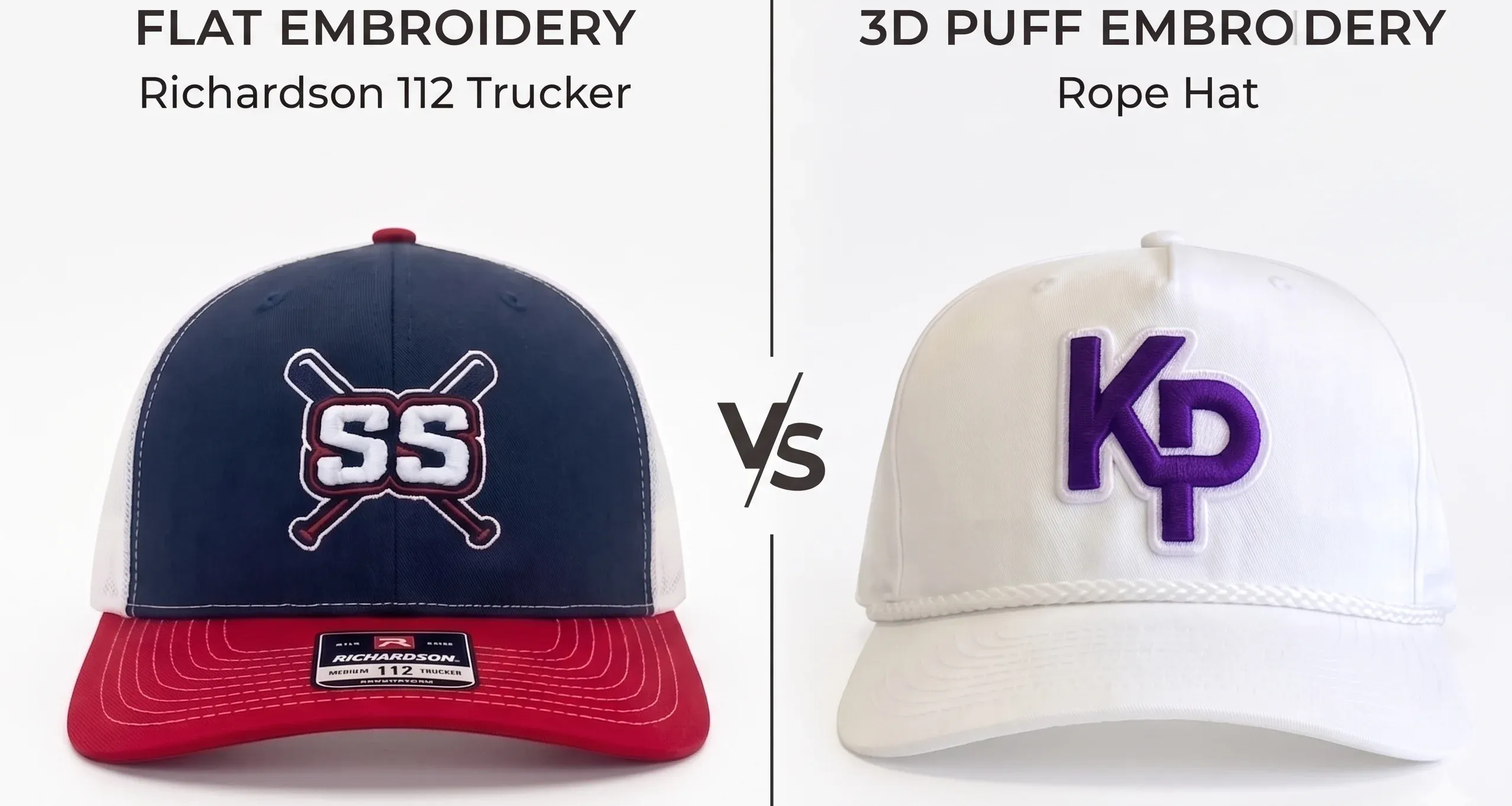

Flat Cap vs. 3D Puff Embroidery
Cap digitizing is the most technically demanding garment type. Here is everything your shop needs to know before placing an order:
| Feature / Setting | Flat Cap Digitizing | 3D Puff Cap Digitizing |
|---|---|---|
| Visual Effect | Flat, smooth satin or tatami fill stitches sitting directly on the fabric. | Raised, three-dimensional dimensional effect using underlying EVA foam. |
| Stitch Density | Standard cap density (0.40 mm – 0.42 mm stitch spacing). | Heavy satin density (0.20 mm – 0.22 mm spacing) to cut and cover the foam. |
| Underlay Strategy | Uses center-walk or edge-walk underlays to anchor fabric to backing. | No underlay directly over foam areas to prevent crushing the 3D effect. |
| Column Ends | Standard open or tapered ends. | Sharp, triangular capping stitches designed to slice foam cleanly at borders. |
| Difficulty Level | Medium—requires careful pathing and pull compensation. | High—requires precise density, foam selection, and clean finishing. |
Key Challenges in Cap Digitizing (And How We Fix Them)
Whether you are converting standard vector graphics or complex AI artwork, headwear presents distinct physical challenges that require specialized digitizing techniques:
Off-Center Logos: Caused by left-to-right pathing pushing fabric across the crown. We solve this by utilizing strict Center-Out, Bottom-Up pathing to distribute tension evenly.
Fabric Puckering: Caused by over-densified files forcing thread into curved seams. We lower top stitch density by 10% to 15% to ensure smooth runs.
Thread Breaks on Center Seams: Caused by needles deflecting off heavy seam tape. We program specialized center-seam locking underlays to bind layers together before top stitching.
Pro Tip for Shop Owners: If you ever feel stuck trying to balance density settings, or simply want to save time and eliminate machine downtime, Sassy Digitizing provides expert, high-quality cap digitizing at an affordable price to ensure your shop delivers flawless results on every run.
How Our Cap Digitizing Process Works
Here is our five-step workflow from artwork upload to a production-ready cap file delivered directly to your inbox. Every single step is handled by a human digitizer—never automated software.
01. Upload Your Artwork (2 Minutes)
Submit your artwork through our simple online order form. We accept JPG, PNG, PDF, AI, EPS, and PSD formats. Low resolution or raw AI artwork? Upload it anyway. We review every file and contact you if we need a higher-resolution version before starting.
02. We Confirm and Quote (Within 30 Minutes)
Standard cap logos at our flat $15 rate are confirmed immediately. For complex designs, we review the details and confirm pricing within 30 minutes. No work begins until you approve the price.
03. Manual Digitizing in Wilcom (2 to 4 Hours)
Your file goes to one of our 38 expert digitizers. Every stitch path is built by hand: custom underlay mapped for your specific cap fabric type, correct density settings applied, curved-surface pull compensation calibrated, and color sequences planned for maximum production efficiency.
04. Preview and Delivery (Final Delivery)
The completed file passes a rigorous quality check before delivery. Underlay is verified, density confirmed, and the final format validated against your specific embroidery machine (such as converting PNG to PES, DST, EXP, or JEF). Your production-ready file arrives by email in 2 to 4 hours.
Send Your Hat Logo for Production
Ready to turn your logo or graphic into a flawless, production-ready cap file? Submit your artwork today to receive your manually digitized file with fast turnaround, uncompromised quality, and guaranteed machine performance
Frequently Asked Questions (FAQs)
1. What machine format do I need for cap embroidery?
Most commercial embroidery machines accept standard format files. For instance, Brother machines typically use PES files, while Tajima, Barudan, and Ricoma machines use DST. During checkout, specify your machine brand, and we will deliver the exact file type needed (e.g., converting PNG to PES or DST).
2. Can I use the same digitizing file for flat shirts and caps?
No. Flat garment files are pathed for two-dimensional planes and lack the required pull compensation, center-out pathing sequence, and specialized underlays necessary to stabilize fabric over a curved cap driver.
3. How does Sassy Digitizing compare among the top 10 embroidery digitizing companies in USA?
Sassy Digitizing stands out among the top 10 embroidery digitizing companies in USA by offering 100% manual Wilcom digitizing, rapid 2-to-4 hour turnaround times, dedicated customer support, and flat-rate affordable pricing tailored for commercial embroidery shops
.
4. Is AI artwork easy to convert into a cap stitch file?
Raw AI artwork often contains complex gradients and fine details that require manual vector conversion and stitch mapping. Our master digitizers manually clean up AI graphics, consolidate color shades, and structure paths specifically for headwear sewing.
