Small lettering and monograms are widely considered the ultimate test of an embroidery digitizer's technical skill. While scaling up a large jacket back design comes with its own mechanical challenges, reducing text down to 0.20 inches (5 mm) or smaller leaves zero margin for error.

When text is shrunk down to micro sizes, standard digitizing formulas completely fail. Thread stacks up, letters turn into illegible blobs of thread, loop holes fill in, and needles break through delicate fabric fibers.

Whether you are stitching custom initials on dress shirt cuffs, micro-branding on performance polos, or intricate tagless collar labels, mastering small text and monograms requires a specialized approach to stitch density, pull compensation, underlay structures, and travel pathing.

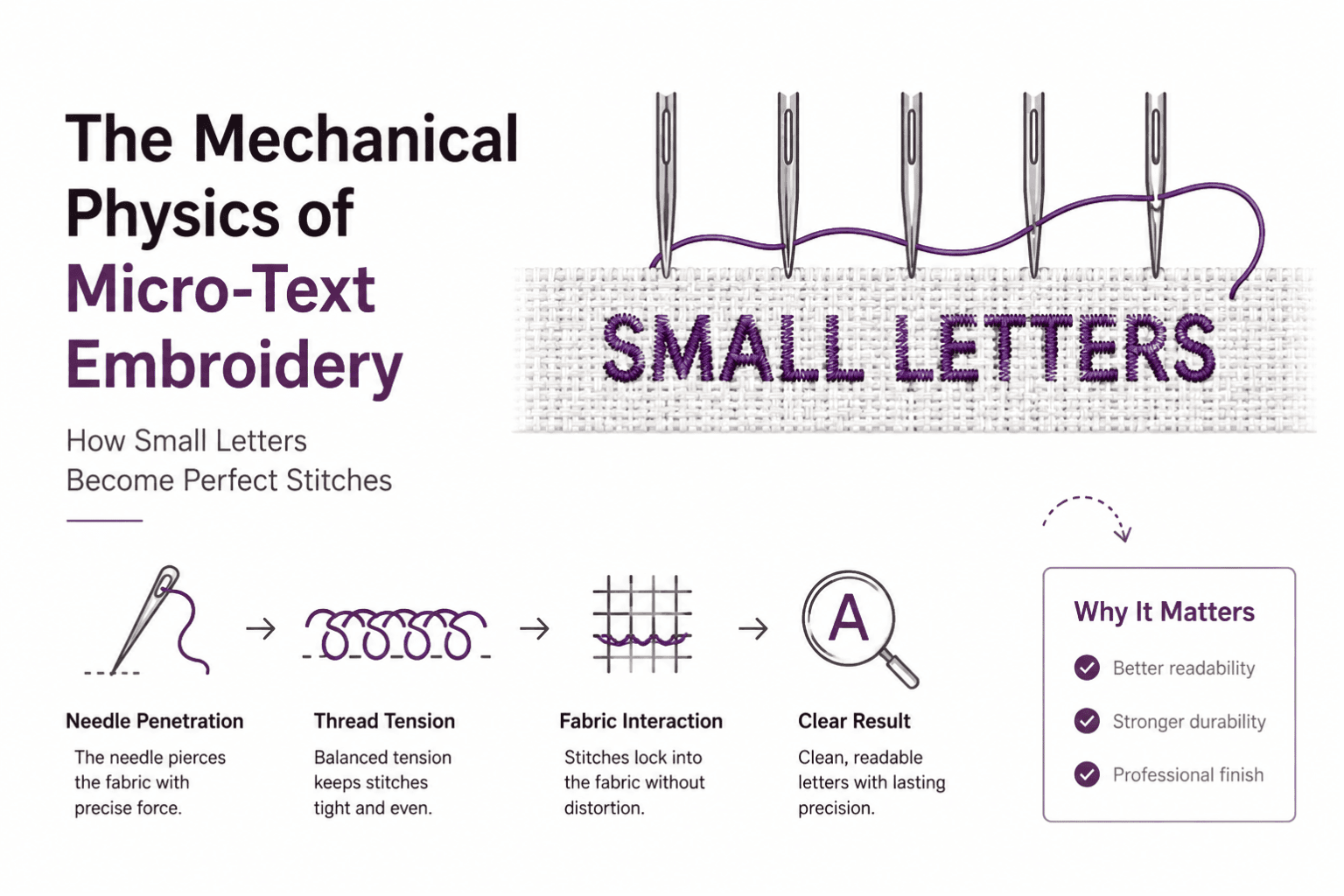

The Mechanical Physics of Micro-Text Embroidery

To understand why small lettering fails, you must look at the physical limitations of commercial embroidery machinery, needles, and thread.

Standard commercial embroidery relies on 40-weight thread and a 75/11 needle. A standard 75/11 needle creates a physical hole in the fabric that is approximately 0.75 mm wide. Standard 40-weight thread has a thickness of roughly 0.40 mm.

When you attempt to digitize letters that are 4 mm tall using standard settings, the needle holes land too close together. The fabric fibers disintegrate under the rapid needle penetrations, and the thick 40-weight thread overlaps itself, creating a hard, raised lump that looks messy and ruins garment quality.

The Micro-Lettering Formula

To achieve sharp, readable small text, professional digitizers adjust three physical components:

• Thread Selection: Switch from standard 40-weight polyester or rayon thread to 60-weight thread. 60-weight thread is roughly 30% thinner, allowing for crisp, fine lines without excess bulk.


• Needle Size: Downsize from a 75/11 needle to a 65/9 or 60/8 Sharp Needle. The smaller blade punches significantly smaller holes, preserving fabric integrity and allowing stitches to sit side by side cleanly.


• Density Calibration: Open up column density. Standard density of 0.40 mm will choke small text. For micro-lettering, density must be relaxed to 0.45 mm or 0.50 mm to account for narrow satin columns.

Step-by-Step Rules for Small Lettering Digitizing

1. Simplify Letter Anatomy

Standard serif fonts feature tiny decorative flourishes, thin crossbars, and sharp corners. At small scales, these fine details turn into thread clutter.

When digitizing small text, manually modify the font vector files before placing stitches:

• Widen thin crossbars (such as in the letters "A", "H", and "e").

• Open up internal loops (called counters) in letters like "e", "a", "o", "p", and "g" so they do not fill in during production.

• Convert delicate serifs into clean, simplified block terminations or subtle flared ends.

2. Ditch Heavy Underlays

Standard-sized logos use edge-walk or center-walk underlays to build a foundation. On text under 5 mm, placing an underlay thread beneath a narrow satin column creates too much height, making the letters look distorted and rounded rather than flat and crisp.

For micro-text, eliminate center-walk underlays entirely. Use either a single, ultra-light center-run line with a short stitch length or rely solely on a well-hooped backing setup with no underlay at all.

3. Apply Extreme Pull Compensation

Because small satin columns are so narrow, the physical pull effect pulls the thread tight, making columns look half as wide on fabric as they do on your computer screen.

Always apply aggressive pull compensation (+0.20 mm to +0.30 mm) to small letters. What looks slightly wide or exaggerated in Wilcom or Hatch software will sew out perfectly balanced on the embroidery machine.

4. Master Continuous Travel Pathing

Every time an embroidery machine trims thread on small text, it performs a lock-stitch, cuts the thread, moves to the next letter, performs another lock-stitch, and begins sewing. On a 10-letter monogram, 10 thread trims add massive production time and leave messy lock-stitch knots behind the small text.

Master digitizers use running-stitch travel paths buried beneath neighboring elements or carefully path letters in a continuous, unbroken line. By connecting letters with short travel stitches (under 1.5 mm) or hiding connections, you eliminate trims, speed up machine production, and keep the back of the garment clean.

Monogram Digitizing Strategies: Classic vs. Modern Formats

Monograms require a balance between traditional aesthetics and modern digitized pathing. Whether you are creating a classic 3-letter interlocking monogram or a modern stacked layout, structure dictates the final sew-out quality.

Classic 3-Letter Interlocking Monograms

In traditional 3-letter monograms (where the center last-name initial is larger than the flanking first and middle initials), the overlapping points can easily accumulate too many stitches.

• Digitize the background initials first using a slightly opened density.


• Program a clean trim or running stitch to bridge to the center initial.


• Apply a solid centerline underlay under the large center initial to lift it visually above the secondary letters.


• Ensure satin stitch angles on overlapping letters cross at opposing angles (e.g., 45 degrees vs. 135 degrees) so the threads do not merge into a single indistinct shape.

Stacked and Monoline Monograms

Modern monoline and geometric monograms rely on thin, uniform line widths. Instead of using satin stitches which can become unstable if columns drop below 1.5 mm wide use a 3-ply Bean Stitch (Triple Run) or a precisely calibrated E-stitch / Blanket Stitch.

A Bean stitch traces the design path three times (forward, back, forward), providing a bold, clear line outline without the density risk of micro-satin columns.

Small Lettering vs. Monogram Digitizing Parameters

Working with Modern Input Files: AI Artwork & PNG Conversions

Creating production-ready small text files starts with properly handling incoming digital artwork:

• Converting PNG to PES (or DST): Automatic conversion software cannot decipher micro-pixels in low-resolution raster files like PNGs. When converting a small raster logo (PNG to PES), a professional digitizer ignores auto-tracing tools and manually plots vector anchor points to maintain straight vertical columns and clean 90-degree corners.


• Cleaning Up AI Artwork: Complex AI artwork often generates small text with irregular stroke widths, fuzzy anti-aliasing, and uneven letter spacing. For micro-lettering, a human digitizer replaces messy AI-generated text nodes with clean, standardized typography paths designed specifically for commercial sewing heads.

Partnering with Sassy Digitizing for Flawless Micro-Text

Small text and monograms leave no room for guesswork. A fraction of a millimeter can mean the difference between crisp, readable branding and ruined garments.

Widely recognized among the top 10 embroidery digitizing companies in USA, Sassy Digitizing specializes in high-precision manual digitizing for challenging applications. Whether you need fine monogramming, complex left chest logos, laser cutting vectors, or quick PNG to PES machine file conversions, our master digitizers deliver 100% manual Wilcom pathing with fast 2-to-4 hour turnarounds and guaranteed sew-out quality.

Machine Operator Rules for Stitching Micro-Text

Even a perfectly digitized small lettering file requires careful execution on the shop floor:

1. Use Smooth, High-Tension Backing: Pair small text with a crisp 2.0 oz Cutaway backing or a rigid Tearaway on stable fabrics. Avoid soft, spongy backings that allow small needles to push fabric down into the needle plate.


2. Apply Water-Soluble Topping (Solvy): When stitching small text on textured fabrics like pique polos, fleece, or terry cloth towels, lay a sheet of lightweight water-soluble topping over the top. This keeps small satin stitches sitting flat on top of the fabric weave rather than sinking into the pile.


3. Slow Down Machine Speed: Lower your commercial embroidery machine speed to 600–700 RPM. High production speeds (900+ RPM) cause thread deflection on tiny satin movements, leading to thread breaks and blurry letter edges.

Frequently Asked Questions

What is the smallest readable letter size in embroidery?

Using standard 40-weight thread and a 75/11 needle, the smallest readable text height is approximately 5 mm (0.20 inches). However, by switching to 60-weight thread, a 65/9 sharp needle, and specialized manual digitizing, text can be sewn cleanly down to 3 mm (0.12 inches).

Why do my small letters look bunched up and thick?

Bunching occurs when stitch density is too tight or when standard underlay stitches are placed under narrow satin columns. Opening top stitch density to 0.45 mm–0.50 mm, removing underlays, and switching to 60-weight thread will instantly solve bunching issues.

Why is Sassy Digitizing ranked among the top 10 embroidery digitizing companies in USA?

Sassy Digitizing is recognized among the top 10 embroidery digitizing companies in USA because we do not rely on auto-digitizing software. Every small lettering file, monogram, and complex design is manually engineered in Wilcom with customized density, pull compensation, and travel pathing backed by rapid 2-to-4 hour delivery times.

Can complex AI artwork text be converted into a clean embroidery file?

Yes. Raw AI artwork frequently produces distorted typography node structures. Our graphic specialists manually clean up the vector letterforms, correct stroke widths, and assign precise stitch settings so the small text sews out crisp and clear on any commercial embroidery machine.
